Fire Rated Silicate Wrap
Fire Rated Silicate Wrap

Fire Rated Silicate Wrap

Fire Rated Silicate Wrap is supplied as a board or blanket layer for duct casings, equipment shells, partitions, and service passages exposed to heat.
Material form and thickness are selected from the drawing and fire requirement. Fixing space, nearby frames, openings, covers, and the surface treatment are checked at the same time.
Send Inquiry

Description



Fire Rated Silicate Wrap can provide thermal, fire, acoustic, or condensation-control coverage around enclosed building services. A straight dimension is not enough for ordering because the insulation may meet steel framing, inspection covers, wall penetrations, or equipment edges. We therefore confirm the board or blanket format, fire-limit thickness, cut allowances, facing, and fastening space before packing. This keeps the pieces suitable for the actual route instead of treating the material as a general stock sheet.

-958749779-10996985812098010573



Product Parameters



Parameter

Specification

Material / Core

Aluminum silicate needled blanket with foil or reinforced facing; silicate or calcium silicate fire layer by system

Size

7200 x 610 mm x20mm/30mm
5200 x 610 mm x40mm
3600 x 610 mmx50mm/60mm
2600 x 610 mm x80mm
3000 x 610 mm x80mm

Thickness

20 mm-60 mm,80 mm

Density

96 kg/m³ for aluminum silicate blanket; 120±10 kg/m³ rock wool core where composite board is used

Fire Resistance

0.5 h,- 3h by tested duct wrap system

Thermal Conductivity

Rock wool core ≤0.043 W/(m·K); calcium silicate board ≤0.055 or ≤0.078 W/(m·K) by report

Packing

Roll or carton; packing mark follows size, thickness, and fire-resistance level



Certifications & Qualifications



product-1190-1682

The qualification set follows the material that is physically supplied. The general word 'silicate' is not used as a substitute for the product name shown on the certificate.

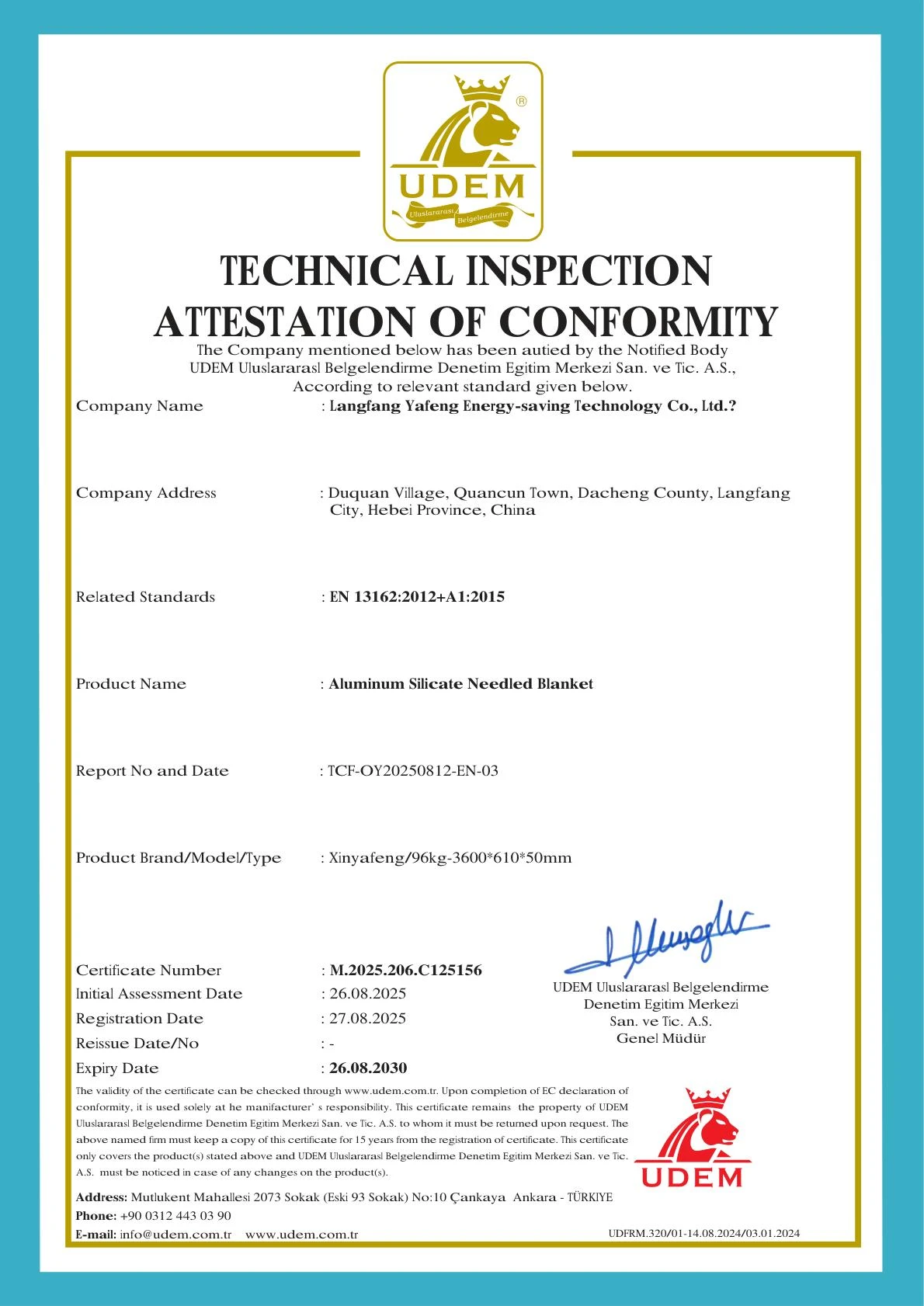

For an Aluminum Silicate Needled Blanket order, the available conformity reference is UDEM certificate M.2025.206.C125156 with report TCF-OY20250812-EN-03. The cited standard is EN 13162:2012+A1:2015, and the listed model is Xinyafeng/96kg-3600*610*50mm.

If Fire Rated Silicate Wrap is built from another board or composite system, the corresponding material record and fire-test file must be confirmed before dispatch rather than using the blanket certificate au

tomatically.

Management-system records may also be provided: FAP25259601QRO for GB/T 19001-2016 / ISO 9001:2015, FAP25259601ERO for GB/T 24001-2016 / ISO 14001:2015, and FAP25259601SRO for GB/T 45001-2020 / ISO 45001:2018.

The final document pack can include TDS, MSDS, test reports, customs papers, and a packing list under the same order name.



FAQ



Q: Why must the installation area be identified?

A: A ceiling void, equipment casing, hot duct, cold service, or wall opening creates different requirements for thickness, fixing, and surface protection.

Q: Can pieces be grouped by route or dimension?

A: Yes. Size-based or route-based packing makes it easier to locate the correct pieces during installation.

Q: How should a route with many corners be prepared?

A: Allow for shaped cuts, shorter sections, and additional joint material so edges can be closed without leaving gaps.
