Fire Barrier Duct Wrap
Fire Barrier Duct Wrap

Fire Barrier Duct Wrap

Designed for ventilation and smoke-control ducts, fire barrier duct wrap forms a tested enclosure around routes that pass through plant rooms and fire-rated compartments.
Supply details are taken from the approved drawing. We review straight runs, bends, access points, available clearance, required fire period, facing, and packing method before preparing the system.
Send Inquiry

Description

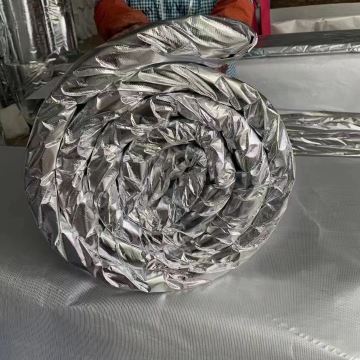

The fire barrier duct wrap system places a controlled insulation layer around ductwork where fire, heat, sound, or condensation performance is required. The wrap must pass hangers, flanges, corners, and support frames, so thickness, layer count, joint closure, and surface finish need to follow the tested build-up. Careful preparation reduces loose edges and unnecessary trimming during installation.

1



Product Parameters



Parameter

Specification

Material / Core

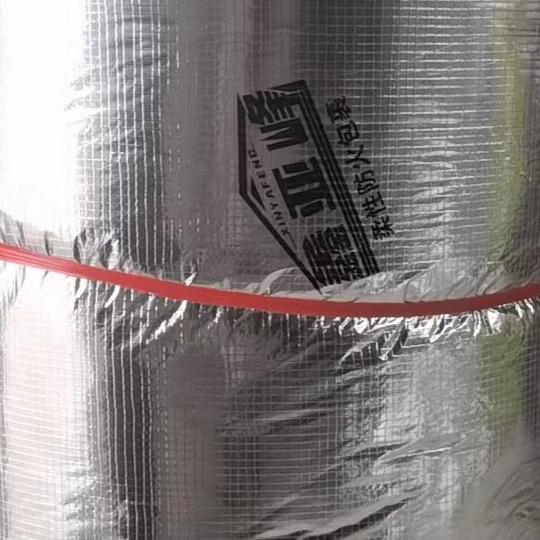

Aluminum silicate needled blanket with foil or reinforced facing; silicate or calcium silicate fire layer by system

Size

7200 x 610 mm x20mm/30mm
5200 x 610 mm x40mm
3600 x 610 mmx50mm/60mm
2600 x 610 mm x80mm
3000 x 610 mm x80mm

Thickness

20 mm-60 mm,80 mm

Density

96 kg/m³ for aluminum silicate blanket; 120±10 kg/m³ rock wool core where composite board is used

Fire Resistance

0.5 h,- 3h by tested duct wrap system

Thermal Conductivity

Rock wool core ≤0.043 W/(m·K); calcium silicate board ≤0.055 or ≤0.078 W/(m·K) by report

Packing

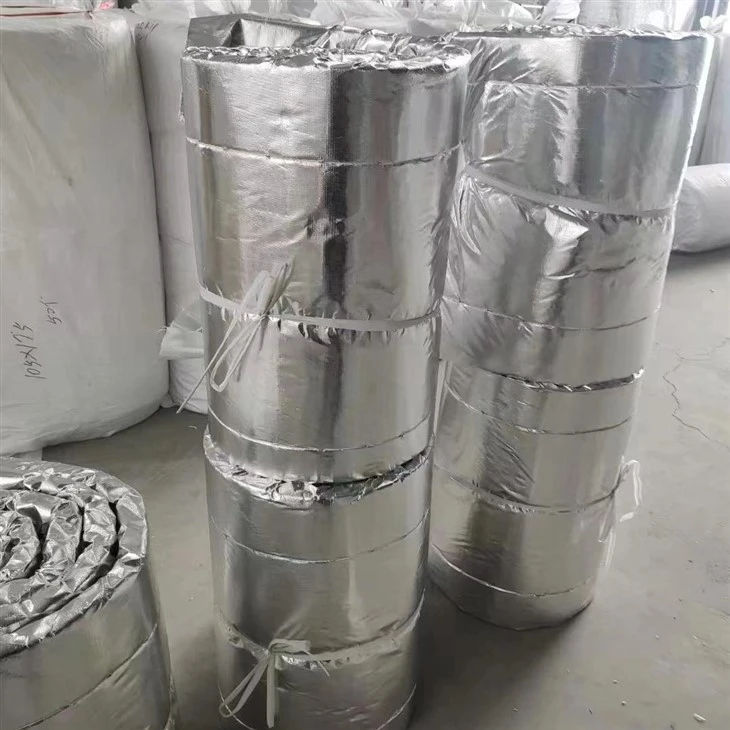

Roll or carton; packing mark follows size, thickness, and fire-resistance level



Product Advantages



01


Limited ceiling or shaft space can be handled by selecting the tested layer arrangement against the actual installation clearance.


02


Compatible facing and sealed joints give the completed enclosure a more continuous surface for inspection and handover.


03


Tape, protective covers, fixing pieces, and support accessories can be packed with the fire barrier duct wrap when they are listed in the order.

-217279304-1281626199284592124



Certifications & Qualifications



product-1190-1682

Qualification documents are matched to the actual duct-wrap construction. An aluminum silicate blanket core uses the blanket conformity file, while a composite arrangement must also be linked to its own fire-test report.

The company file includes three management certificates: Quality Management System, No. FAP25259601QRO, under GB/T 19001-2016 / ISO 9001:2015; Environment Management System, No. FAP25259601ERO, under GB/T 24001-2016 / ISO 14001:2015; and Occupational Health and Safety Management System, No. FAP25259601SRO, under GB/T 45001-2020 / ISO 45001:2018.

For the aluminum silicate layer, the available document is the UDEM Technical Inspection Attestation of Conformity for Aluminum Silicate Needled Blanket. It refers to EN 13162:2012+A1:2015, certificate M.2025.206.C125156, and report TCF-OY20250812-EN-03.

Its certified model is Xinyafeng/96kg-3600*610*50mm. Order records must retain the name Aluminum Silicate Needled Blanket and must not relabel it as rock wool board or calcium silicate board.

Before dispatch, we can cross-check the material schedule, certificate wording, and package identification.



FAQ



Q: Is fire barrier duct wrap chosen by density alone?

A: No. The tested construction, thickness, facing, fixing method, room conditions, and required documents all affect selection.

Q: How does the fixing method affect the result?

A: Pins, wire, adhesive, tape, and brackets create different edge and seam conditions. A mismatched method can leave movement or open joints.

Q: Which records can be reviewed before shipping?

A: The buyer may check the report copy, order specification, package labels, and packing list before dispatch.
