Name: China Black Rubber Pipe Insulation Manufacturers, Suppliers and Factory - Wholesale Service - Yafeng
Brand: Yafeng
SKU: 305812370

Description

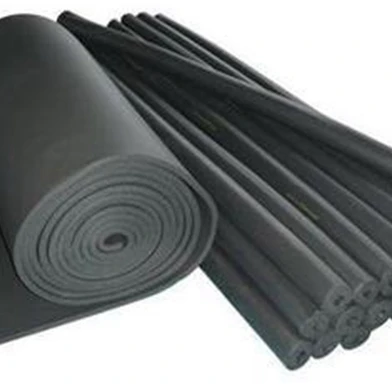

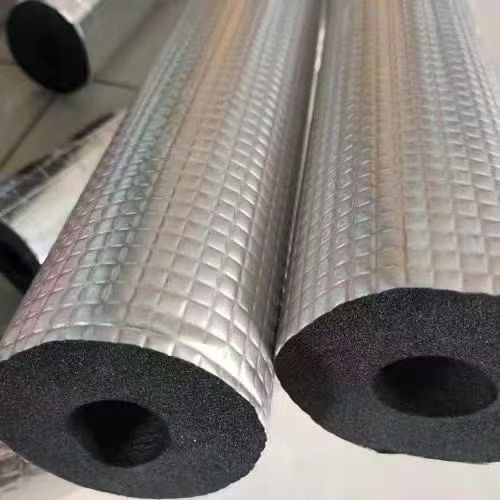

Black rubber pipe insulation is made for chilled water pipes, condensate pipes, fan coil branches, and pump room pipework. It is used where the insulation layer must stay continuous while workers still need access to brackets, covers, labels, or future inspection points. The product should be matched with inner diameter, wall thickness, and length by pipe size; then the facing and fixing method are confirmed so the finished surface is not damaged by repeated trimming.

Product Parameters

Parameter	Specification
Material	Closed-cell rubber plastic insulation pipe
Inner Diameter	Φ6, 9, 13, 16, 19, 22, 25, 28, 34, 48, 60, 76, 89, 108 mm
Wall Thickness	10 mm-50 mm
Single Length	2 m; large size can be cut by order
Thermal Conductivity	≤0.034-0.038 W/(m·K)
Moisture Control	Moisture resistance factor μ ≥1500; closed-cell rate ≥90%
Fire Rating / Temp	B1 flame-retardant or B2 grade; -40°C to 105°C

Main Applications

Black rubber pipe insulation can be placed on main runs, branch areas, or equipment edges when the design needs a continuous layer.

For ceiling or duct work, the material should be matched with bracket spacing so the surface does not sag after fixing.

For narrow rooms, prepare shorter pieces or smaller rolls when long pieces cannot be moved through the site safely.

Certifications & Qualifications

For black rubber pipe insulation, the order form is pipe insulation, so the sheet certificate should not be renamed as a pipe certificate.

Product conformity document: UDEM Technical Inspection Attestation of Conformity for Rubber Plastic Sheet, related standard EN 14304:2015, certificate No. M.2025.206.C125163, report No. TCF-OY20250812-EN-04.

The certificate model is Xinyafeng/800*1500*25mm and applies to Rubber Plastic Sheet. Pipe inside diameter, wall thickness, and length should be confirmed in the TDS and packing list.

If the buyer needs a pipe-specific conformity file, confirm the matching document before shipment.

MSDS, packing list, label photos, and customs documents can be supplied with the final pipe order.

FAQ

Q: Why is sealing important for black rubber pipe insulation?

A: Rubber insulation works only when seams are closed. Open joints may collect moisture and form condensation marks.

Q: Can black rubber pipe insulation be adjusted by order?

A: Yes. Size, thickness, density or grade, facing, packing mark, and accessory list can be discussed before production.

Q: What should be checked when the goods arrive?

A: Check bundle marks, surface damage, quantity, size, and whether the document name matches the product received.
